Retreat - Assignment 01

The Act of WithDrawing

Now that you have begun to understand the existential landscape of the Salt Flats, in particular your chosen building site, it is time to engage that site through a design process. To do this you will undergo a series of abstract and improvisational design investigations.

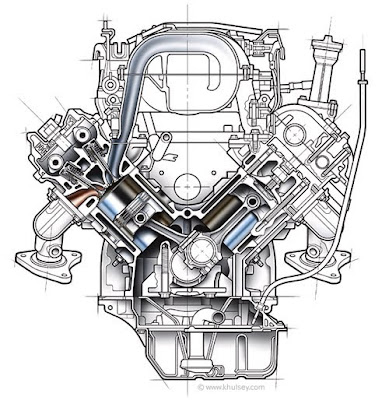

Begin by choosing (2) of the engine sections below. The selection of the section(s) should be intuitive and quick. You will save the images to your computer and format the sections for an 18x18 canvas. Next, print off your sections.

Now you will engage these drawings through a series of sketch overlays. This process will help you to "pull out" important information from each of the sections while still maintaining the sectional qualities of the original drawing. You will produce 5 sketch overlays per engine section (total of 10), resulting in a series of transformational images. These series of abstractions should be done in graphite only; consider line weight and shading as devices to show depth, detail and articulation. Initial abstractions are due October 26th at the beginning of class for review.

The next stage will be to re-create your selected sketches in the computer using CAD or another vector based program. You will use the color swatches below to construct your digitized images. Use black for outlining section cuts, yellow for section fill, and gray for items beyond. As with the graphite drawings line weight is crucial. Additional information will be given at a later date.




Monday, October 19, 2009

Fall Break 2009 - Sketch Day

A few students from the University of Utah have been asking me for a while to organize a sketch day, so on Friday we visited two buildings in Park City, Utah.

The first place we visited was the Sugden Residence. John Sugden was an architect and professor at the University of Utah. Early in his career he studied directly under Mies van der Rohe. Mies's International/Modernist Style is very evident in the home that John designed for his family. John passed away a few years ago, but we were fortunate enough to meet with his wife, Jutta, and discuss her husband and the house as well as recieve a personal tour of the home. To read more on John Sugden and his architectural contributions click here.

Second, was the Har Shalom Synagogue. This contemporary building is placed amist a nature preserve and emerges out of the landscape. There is a trail system that allows you to engage the landscape and view the building as an extention of the environment. Originally designed by the German Architect Alfred Jacoby with the local project architect being Prescott Muir Architects. “Jacoby’s approach from the very start was that this building would have a modern aesthetic that would speak to local traditions, but would not be subservient to them,” says Jack Robertson, project architect with Prescott Muir Architects. For more information click here.
